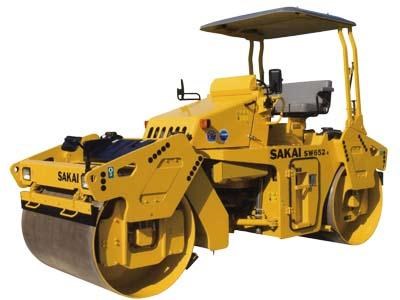

Brand New SAKAI SW652-1K Tandem Vibrating Roller

Features

Sakai patented compaction technologies

• SW652-1/-1k, standard model features 4,020vpm high frequency vibration by which can efficiently achieve the density faster and create smoother hot mix asphalt(HMA) mat.
• "B model", split drum type is also equipped with high frequency vibration and is easy to operate in the tight corner without pushing or shoving the material.
• On "ND model", oscillatory or circular (normal) vibration is selected by switch at operator station depending on the job conditions. The oscillatory vibration is good for thin lift and the circular vibration is effective for thick layer compaction.

Operators comfort

• Full view over drum surface, drum edge and sprinkler nozzles.
• Auto shuft-off of water sprinkler when the Forward & Reverse lever is in the neutral position.

Easy Maintenance

• Rugged articulated centre-pin joint.
• Long life Sakai patenten rubber isolators for drums.

WEIGHT
Gross weight (kg): 7,100
Load on front (kg): 3,450
Load on rear (kg): 3,650

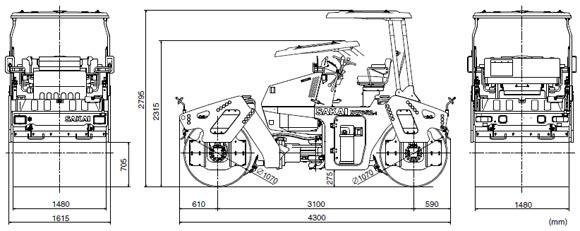

DIMENSIONS
Overall Length (mm): 4,300
Overall Width (mm): 1,615
Overall Height (mm): 2,795 (With Awning)
Wheel Base (mm): 3,100

ENGINE
Model: KUBOTA V3307-DI-T-E2B-RRSH1 (SW652-1K Series)
Type: Diesel, Water-cooled, 4-cycle, direct injection type with turbo charger

VIBRATING SYSTEM
Transmission: Hydrostatic
Vibrator System: Eccentric shaft type
